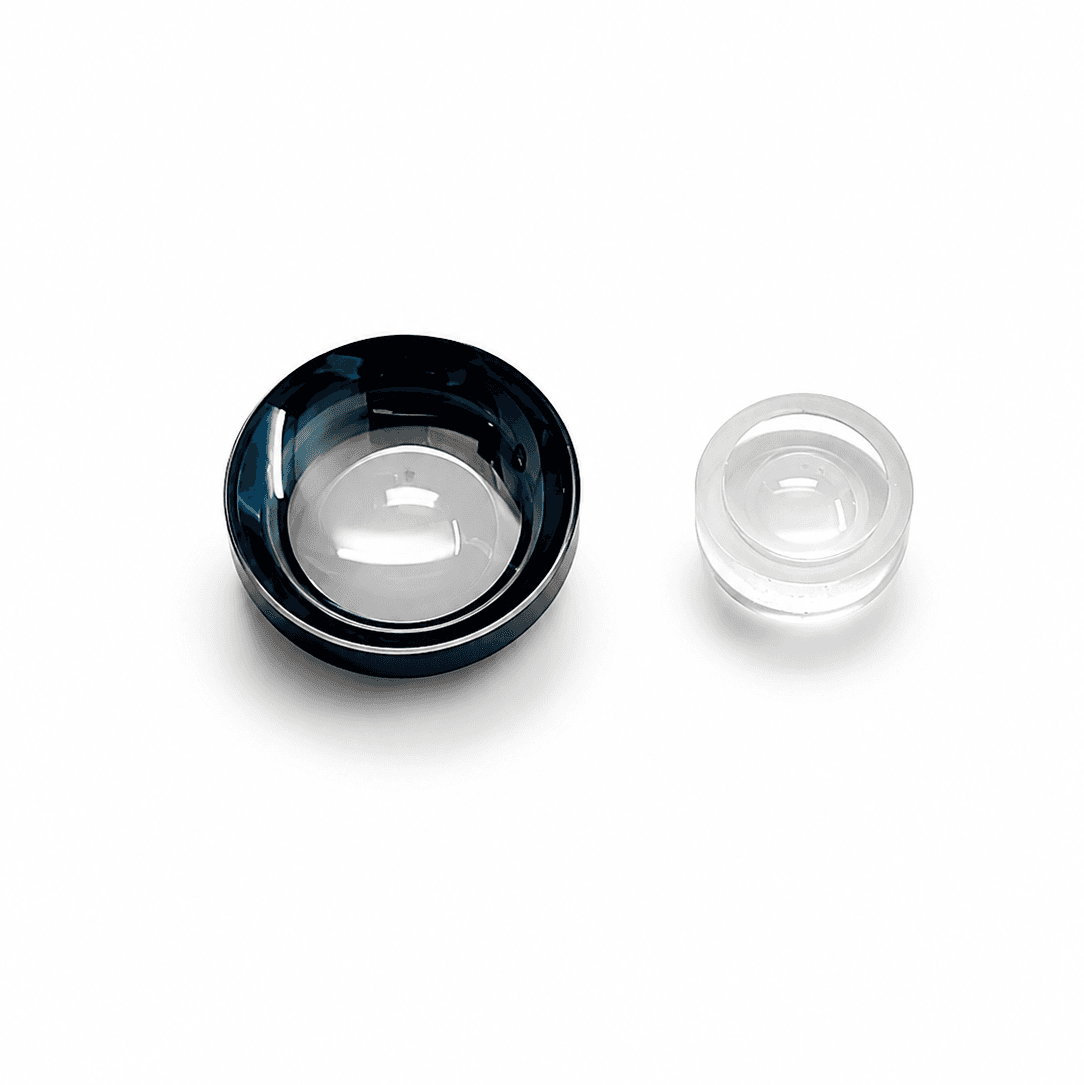

Middle Lens
Precision Optical Lens for Laser Beam Expander Assemblies
The Middle Lens is a precision optical lens used inside laser beam expander assemblies in diamond laser machines. Positioned between the input lens and focal lens, it helps maintain beam stability, improve beam quality, and optimize focus transmission throughout the optical path. Designed for both 1064nm and 532nm laser systems, the lens plays a critical role in maintaining proper beam expansion ratios and maximizing optical efficiency in diamond processing applications.
Industries Served
Product Features
Technical Specifications
Applications
Maintains beam quality and optical efficiency during precision cutting operations.
Improves beam stability for accurate and consistent marking.
Acts as a critical optical component within beam expansion systems.
Optimizes beam transmission between optical elements.
Compatible with Nd:YAG and fiber laser applications.
Supports precision beam control in green laser equipment.
Key Benefits
Improved Beam Quality
Enhances beam correction and optical alignment throughout the laser path.
Higher Optical Efficiency
Maintains proper beam expansion ratio with minimal transmission loss.
Stable Laser Performance
Ensures consistent laser operation during long production cycles.
Reduced Reflection Loss
Improves transmission efficiency and overall laser output.
Long Service Life
Manufactured using durable optical materials for industrial environments.
Easy System Integration
Compatible with standard 8X and 10X beam expander assemblies.
